General
Basically, the TM100-2/2A is a very nice floppy disk drive. I use it with my DREM and FLUXCOPY in conjunction with hard-sectored floppies. So far I have had only good experiences. Especially the drives that are still good and functional today are excellent in my opinion.

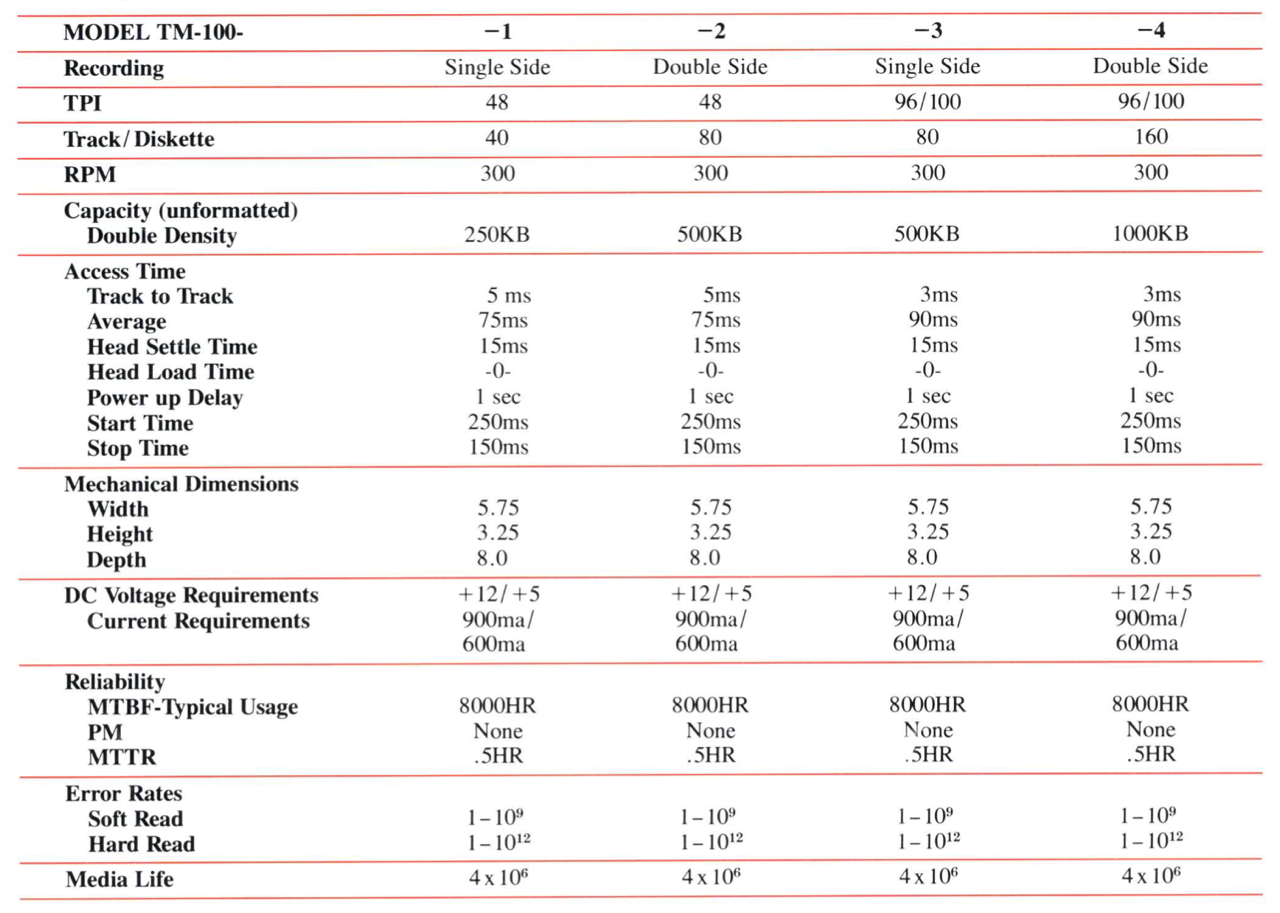

Technical Specifications
(Source: Brochure Tandom TM100 Series)
Alignment
Among the links below you will find two good pages on this topic by Terry Stewart (here is a copy). I have made the experience that sometimes only the track 0 is not set correctly. And you only have to turn one screw. This is actually quite simple. So I got two drives working again within 30 minutes.
Information
Brochures
- Tandon TM100 Series (Feb 1980)
Manuals
- TM100 users manual (1984)
- TM100 service manual (1983)
- Sams Computerfacts, Tandon TM-100-2/2A (02/1986)
External Links
- Minuszerodegrees - Tandon TM100-2 - Known Problems/Issues
- Terry Stewart's (Tezza's) Projects and Articles (Blog)
