Backplane Pro

Reference: RC2014 > Modules > Backplane Pro; https://rc2014.co.uk/backplanes/backplane-pro/

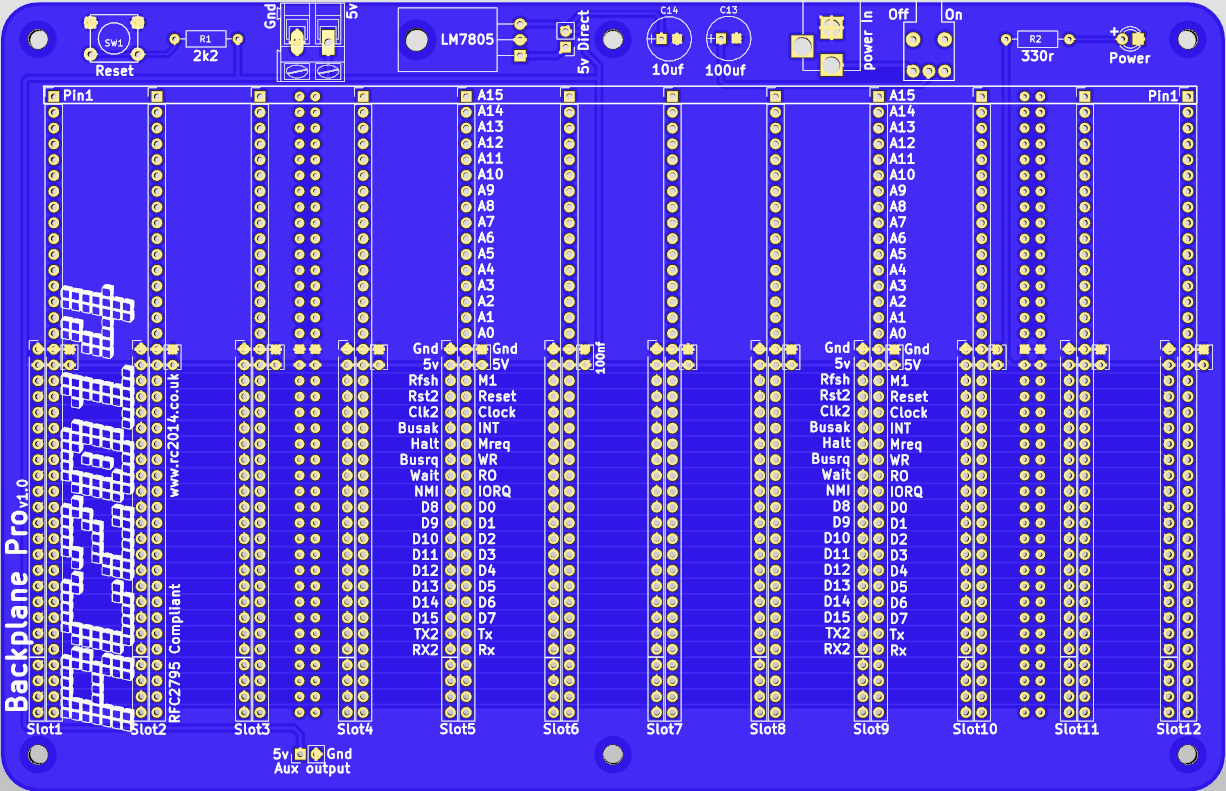

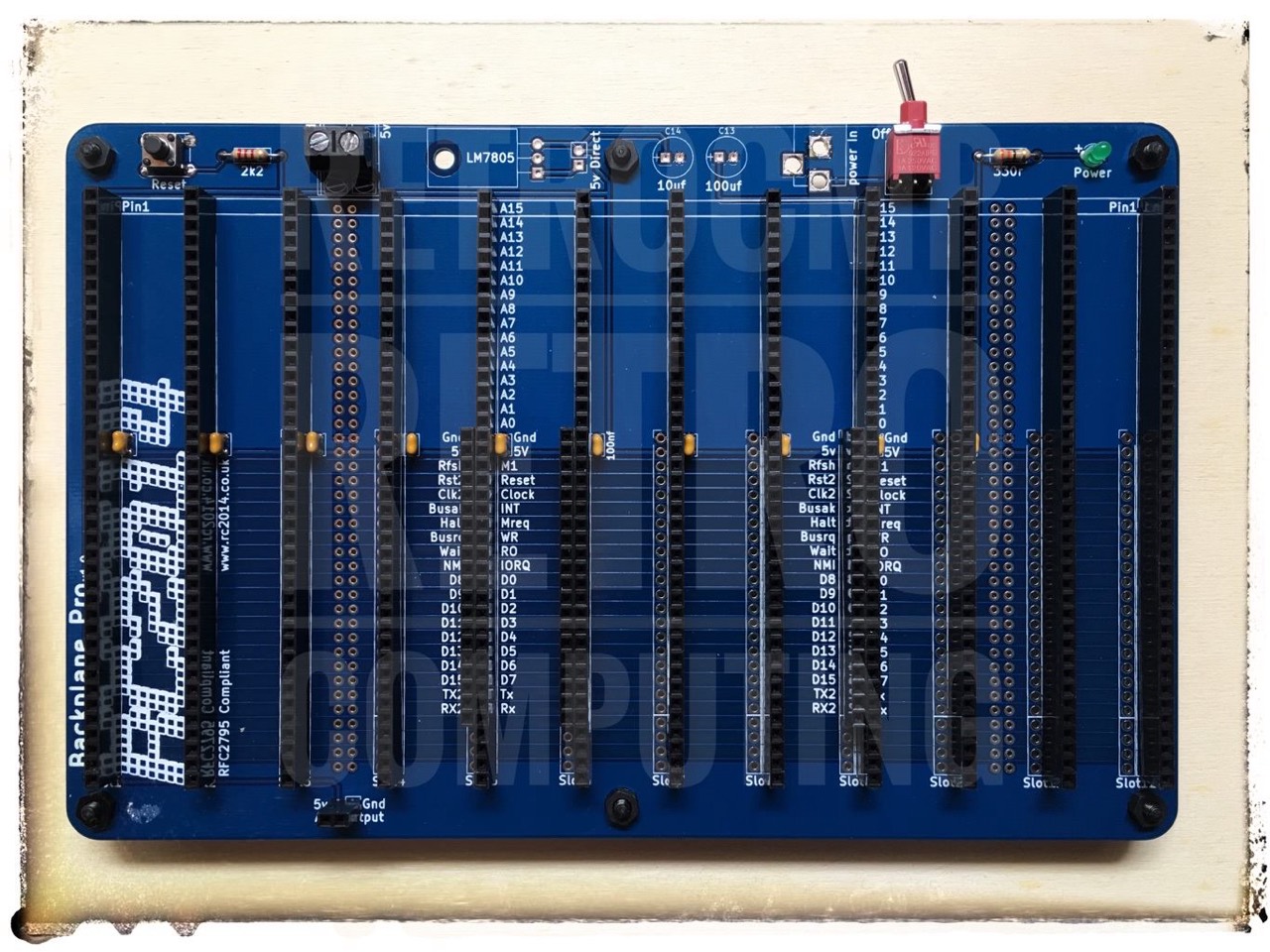

The Backplane Pro builds on the features of the Backplane 8 but with 12 slots it also adds an optional second row of pins for the Enhanced Bus as well as a couple of other convenient power connectors.

In it’s supplied form, all pins from every slot is connected to the same pin on every other slot. Therefore, any module can be plugged in to any slot. However, between slot 3 & 4 and slot 10 & 11 on the standard bus, there is a double row of holes where the copper joining them is exposed on the underside. This makes it easy to cut through to isolate the left-hand 3 slots or right-hand 2 slots. If required, resistors or diodes can be soldered in.
...

---
