Last revision of this page: May 31, 2025

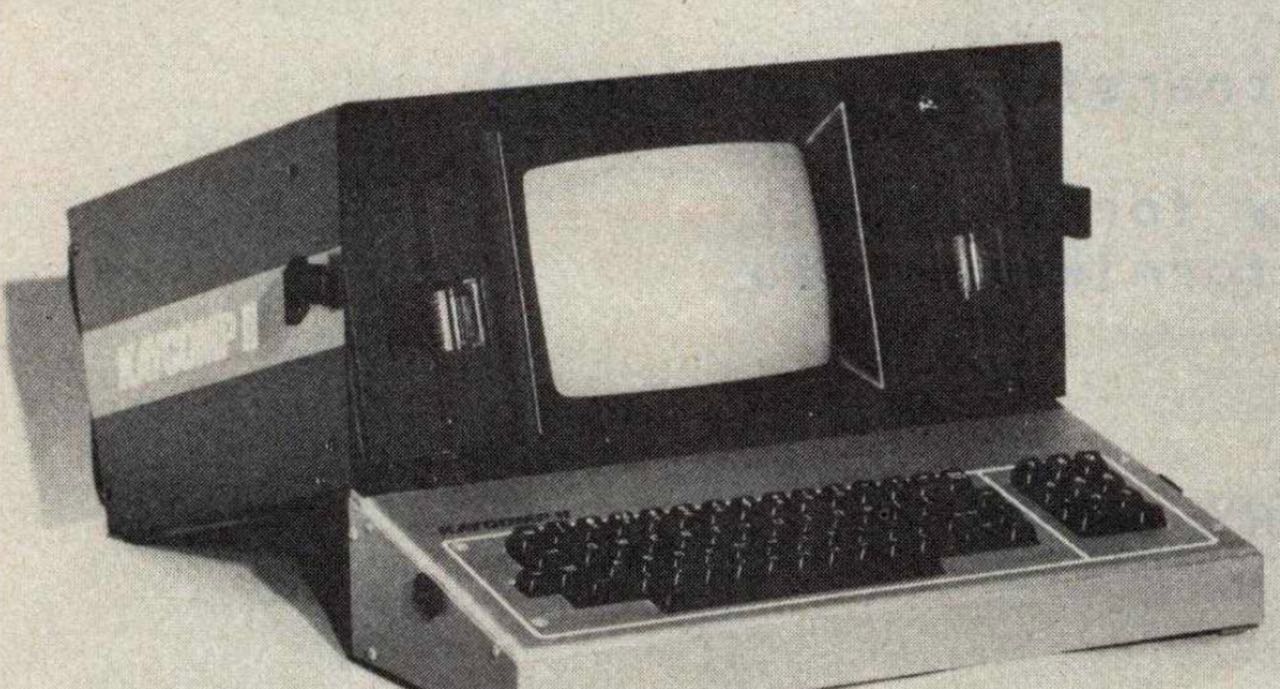

• Kaycomp II (Osborne-alike)
• Kaycomp II (vertical)
• Kaypro II (vertical)

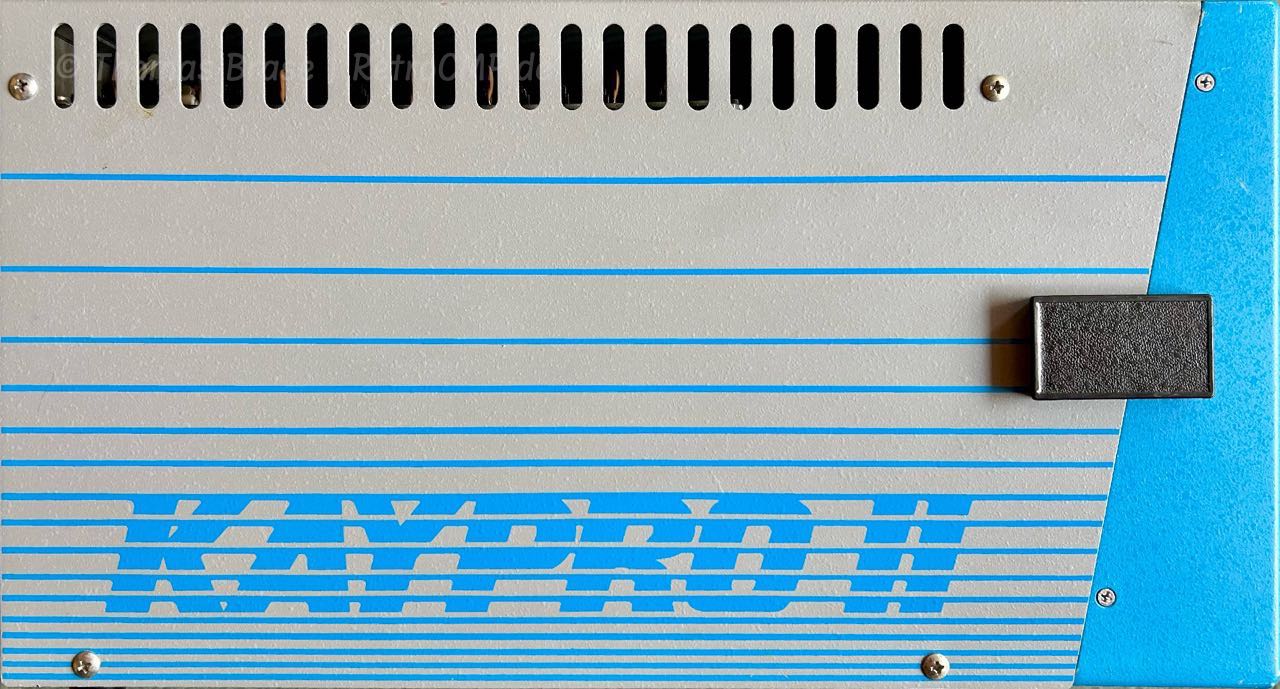

• Kaypro II (horizontal)
• Kaypro 2 (horizontal)
• Kaypro II/2 - Back side
• Kaypro 2/84

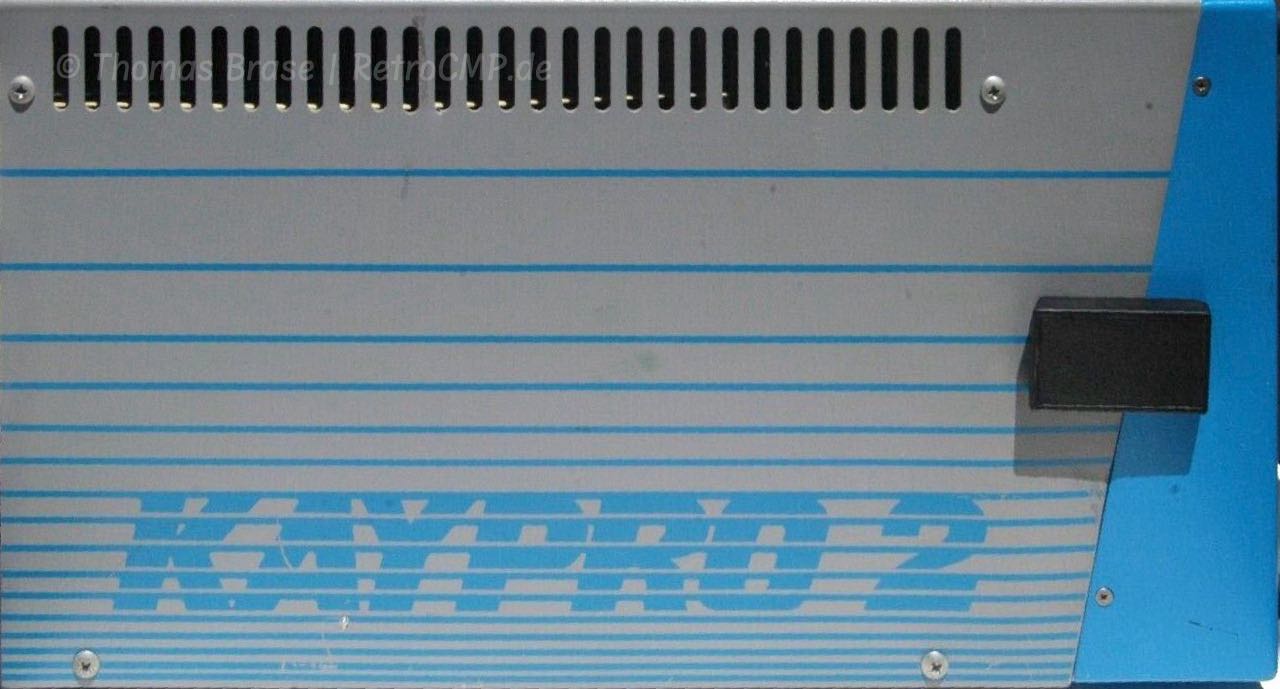

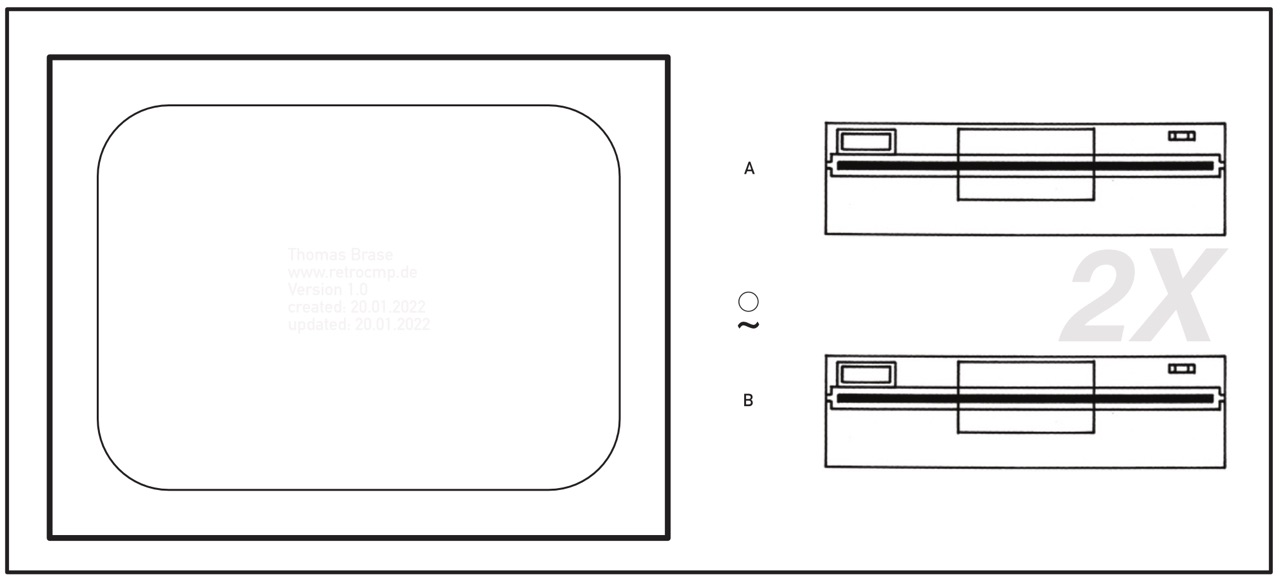

• Kaypro 2X

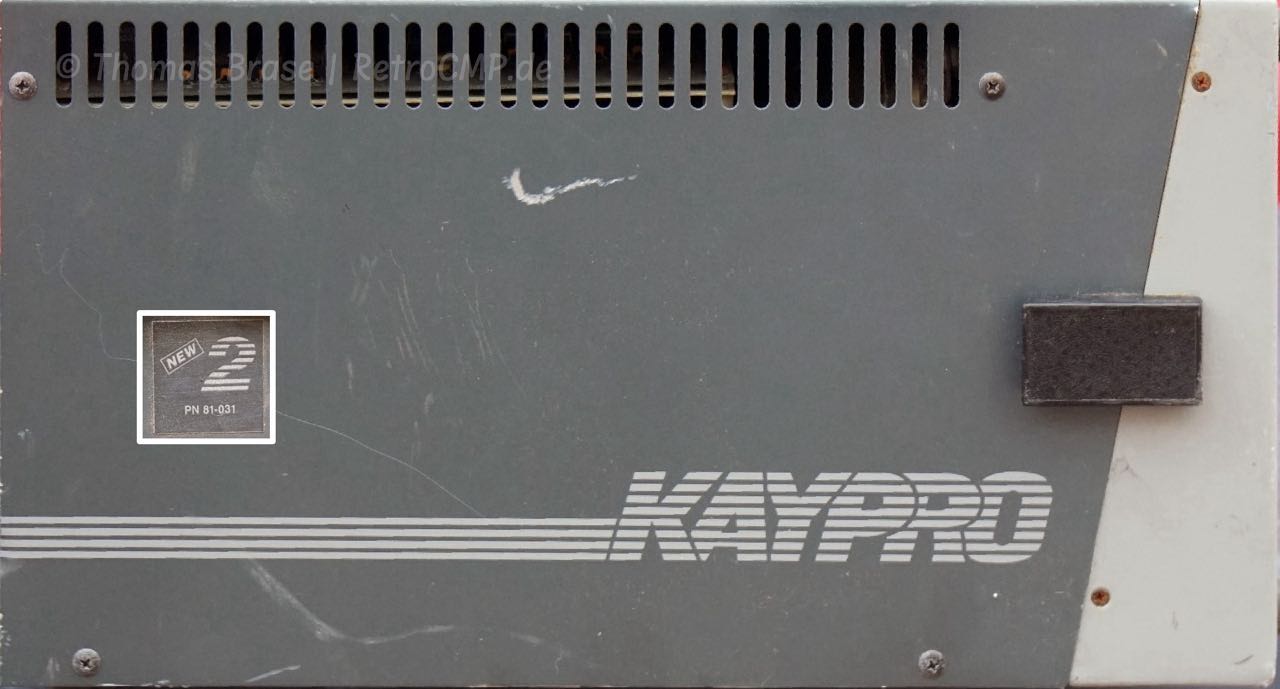

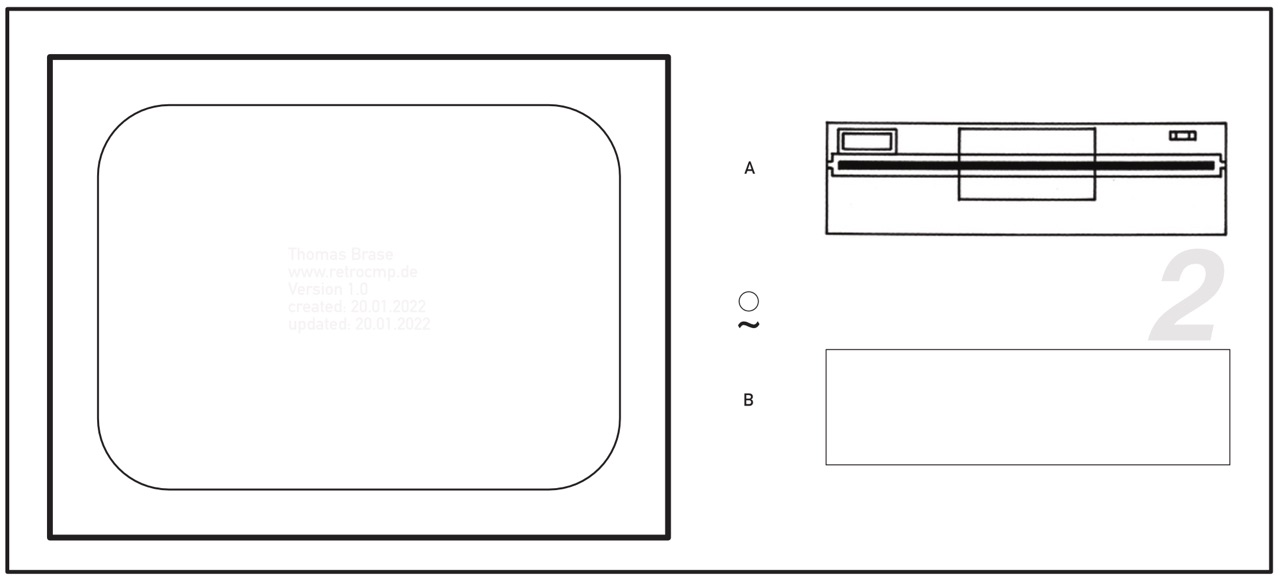

• New Kaypro 2
• Kaypro 4 (from '83)

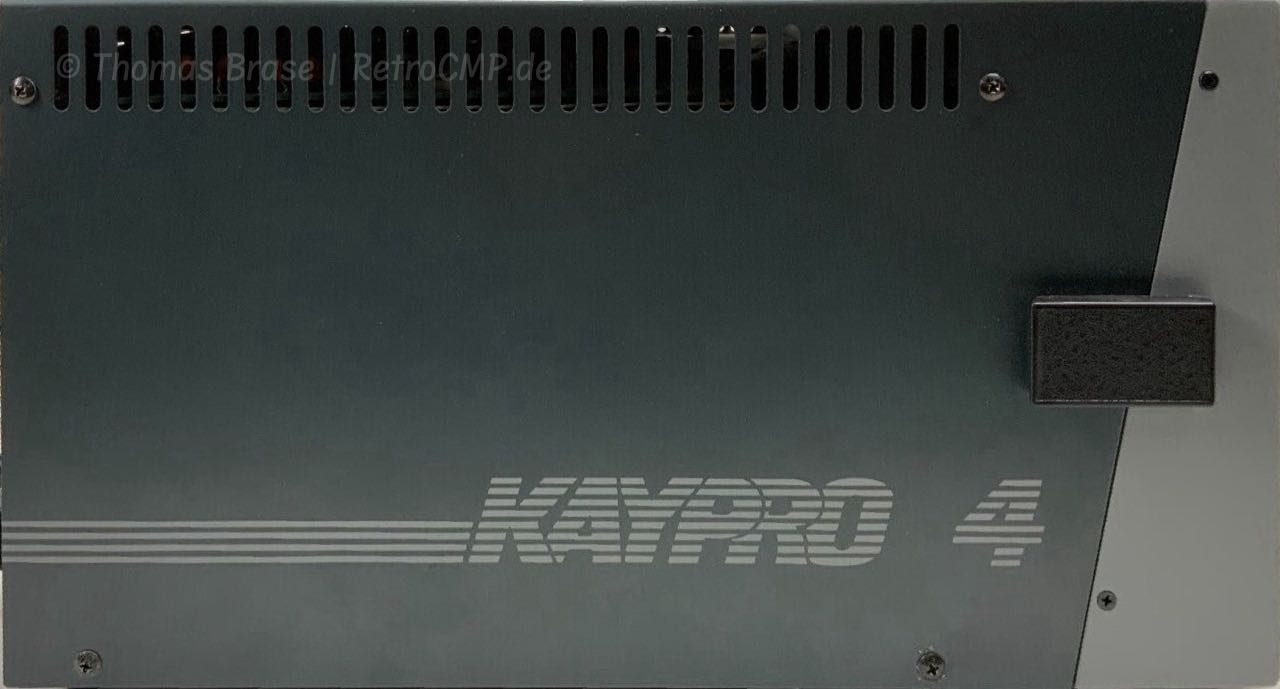

• Kaypro 4/84

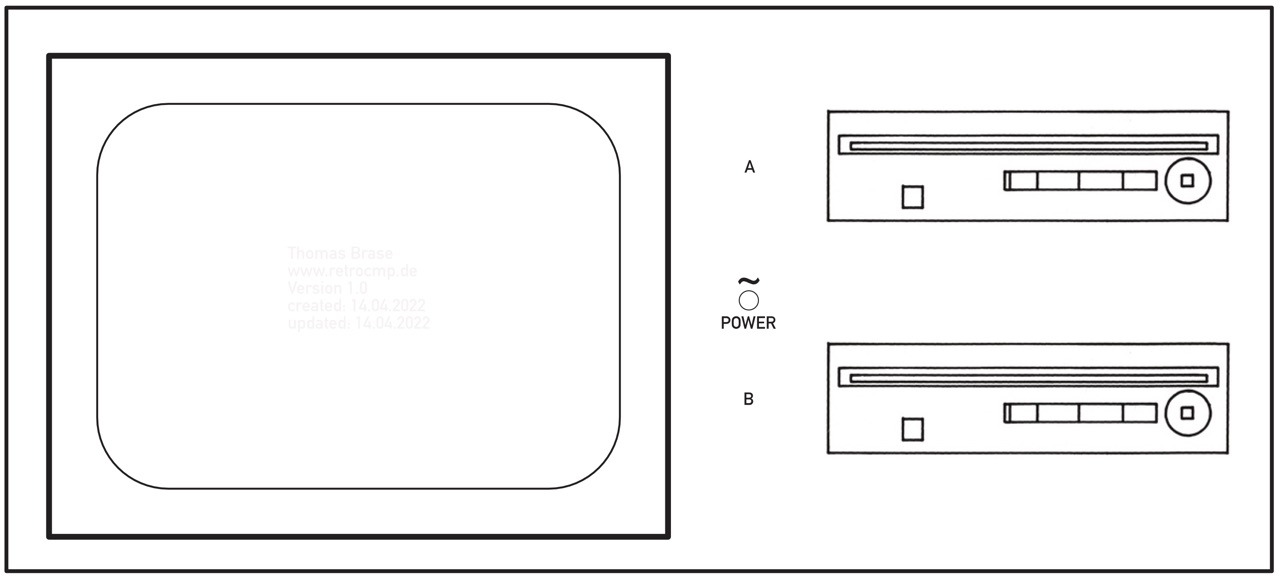

• Kaypro 4X

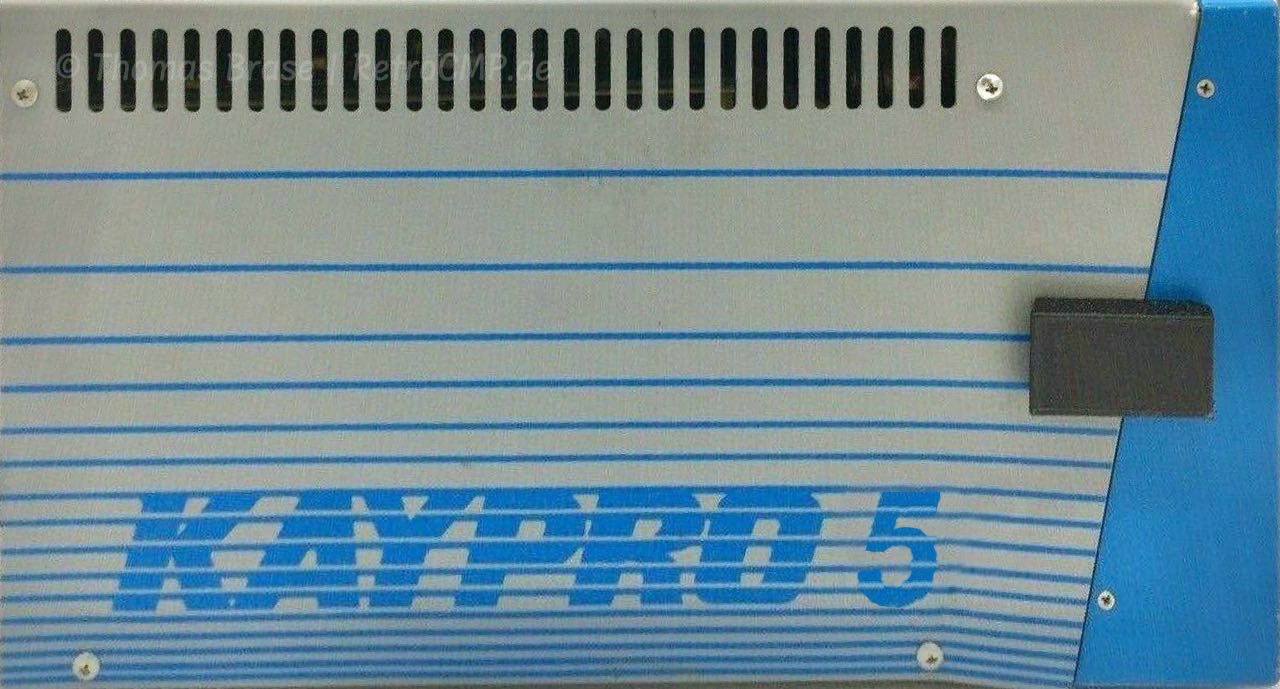

• Kaypro 5
• Kaypro 10 (Pre)
• Kaypro 10/83
• Kaypro 10/84
• Kaypro 12X

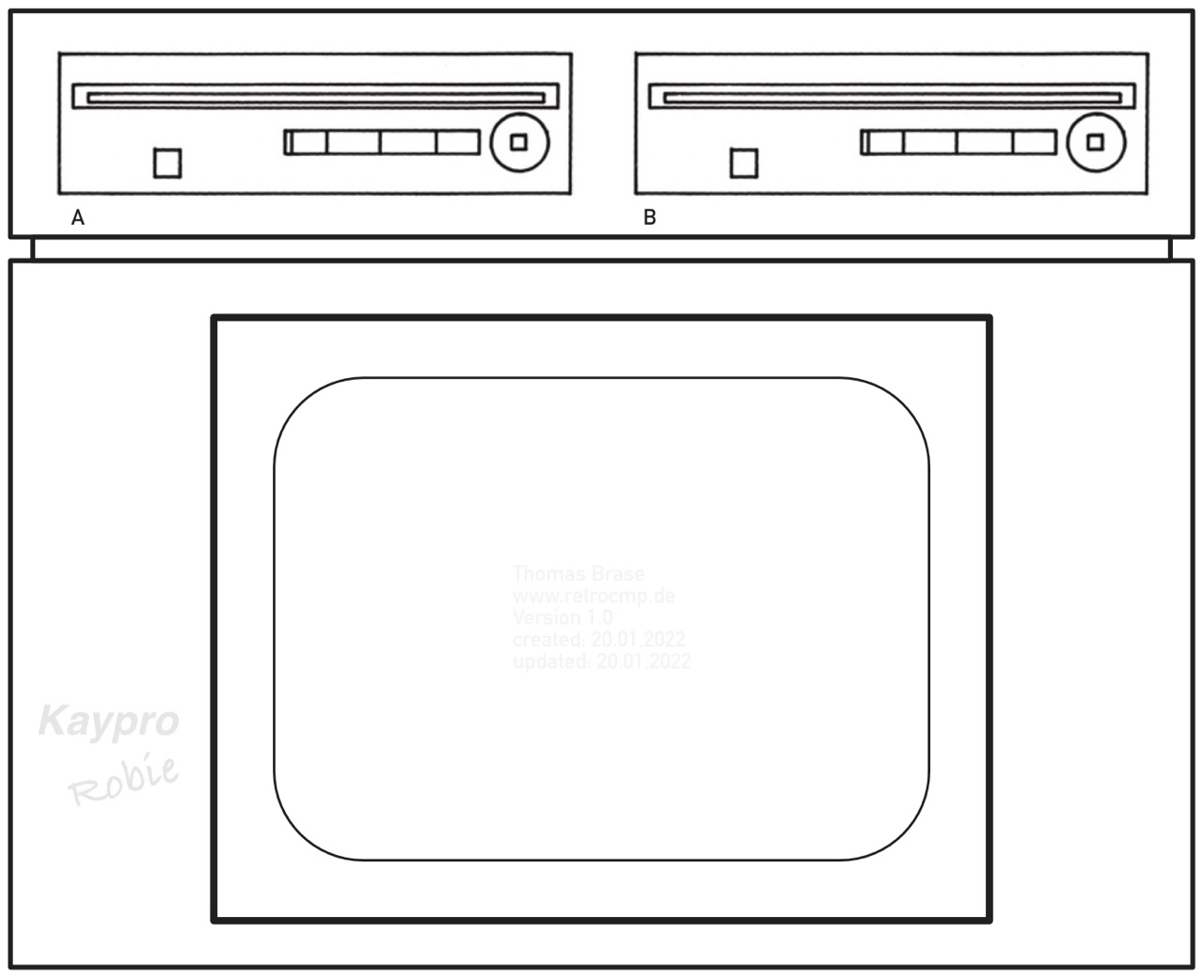

• Kaypro Robie

Janice Batter Kay and Michael Batter are responsible for the design of the Kaypros. They came up with (at least) three designs: Kaycomp II resp. Kaypro II, Robie (‘83) and Robie (’85).

Both run an architecture firm called Batter Kay Associates in California (then and still today). In addition to these computer designs, they also designed three buildings on the NLS/Kaypro company premises in the mid-1980s.

Below I have created simple design views for the various Kaypro models to the best of my knowledge. For the floppy drives, I have (for convenience) used the views from the Kaypro technical manual (1484-F, 1985). The designs were created with Affinity Designer for macOS.

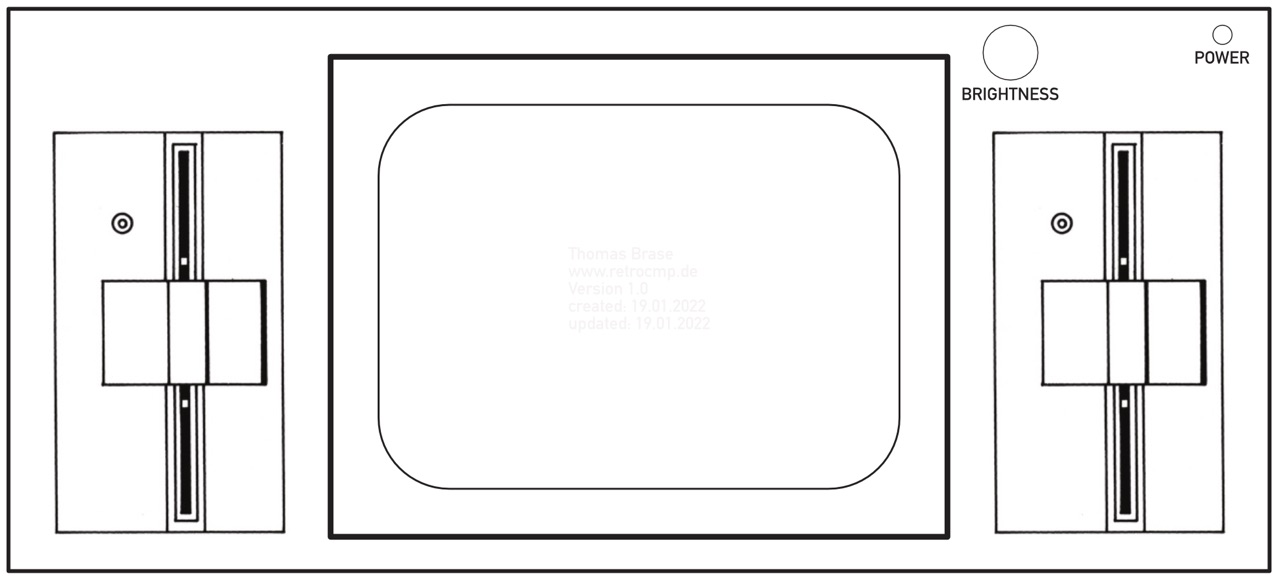

Vertical arrangement of the floppy drives.

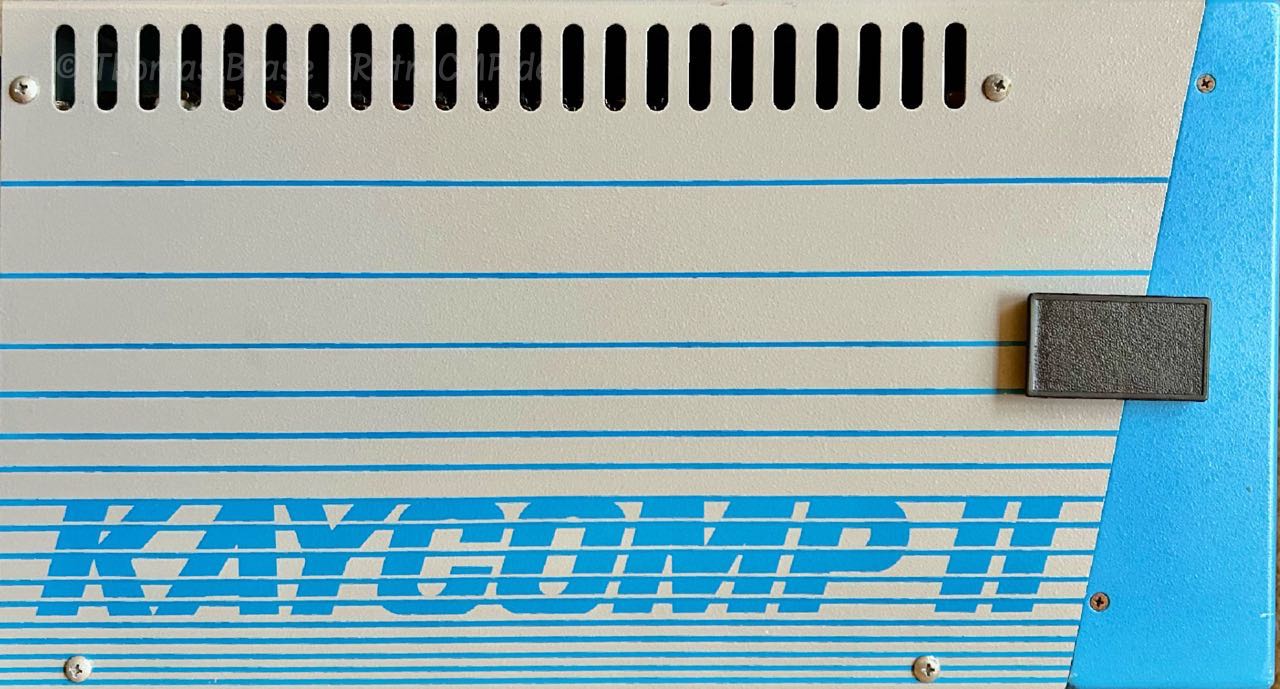

Kaycomp II (by NLS)

Vertical arrangement of the floppy drives.

Kaypro II (by NLS)

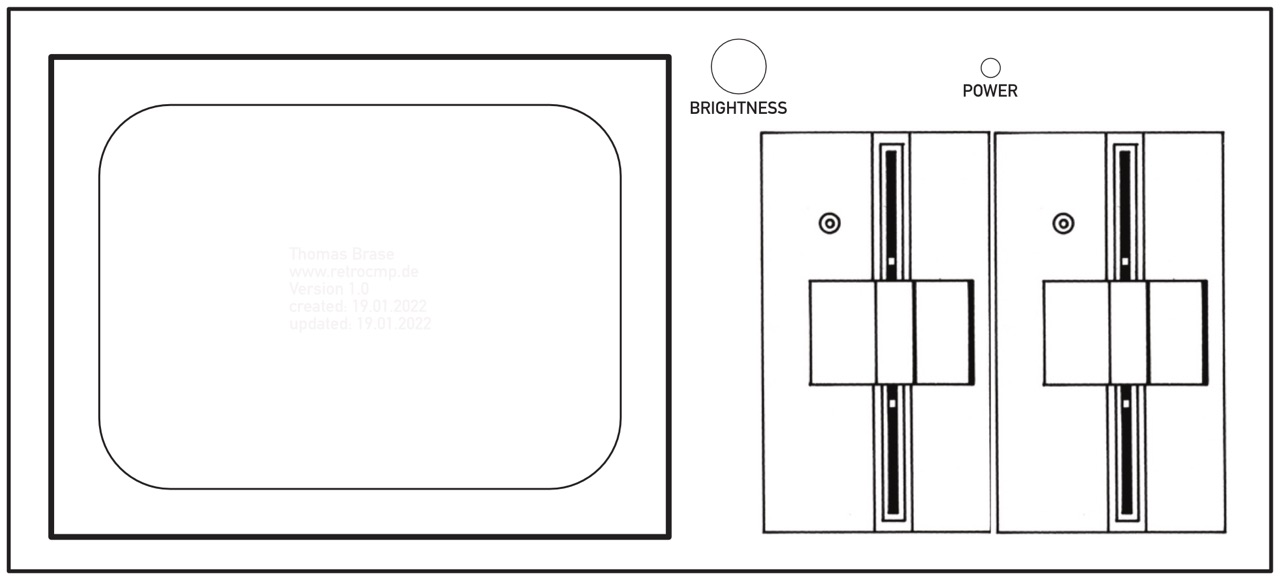

Vertical arrangement of the floppy drives.

Kaypro II (by NLS)

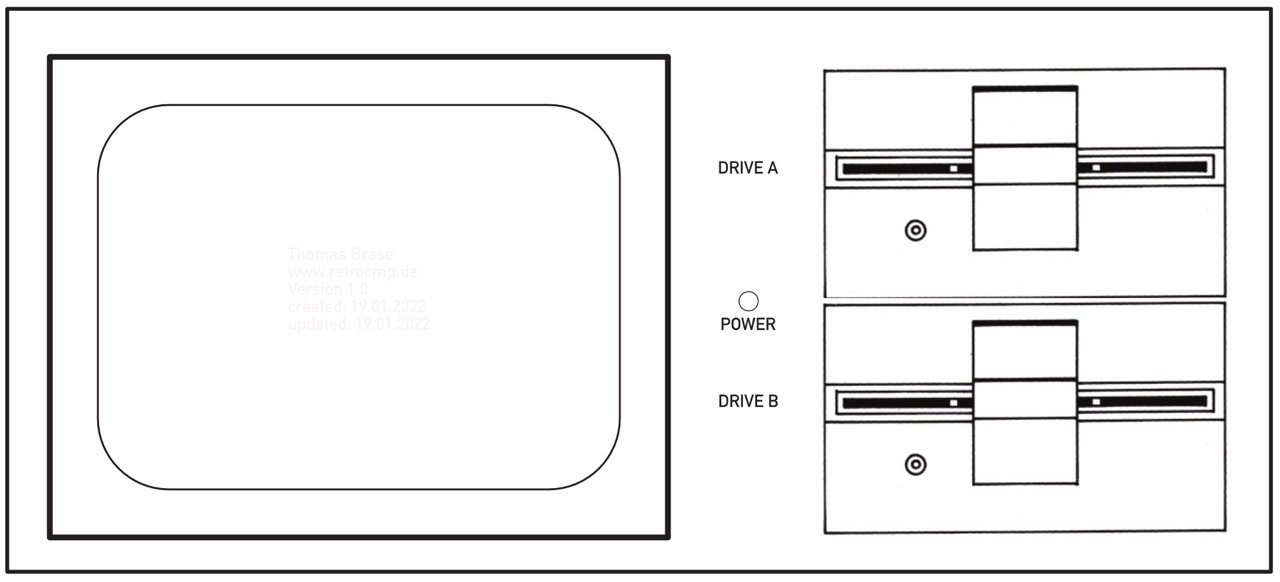

Horizontal arrangement of the floppy drives.

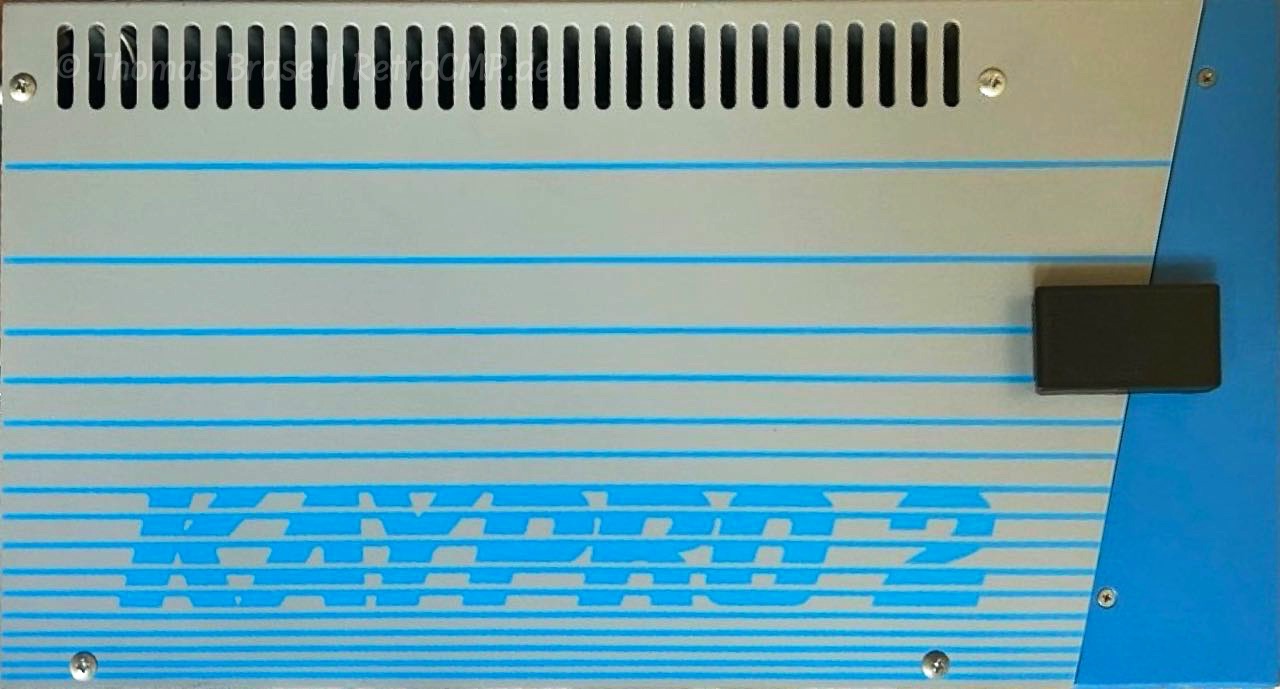

Kaypro 2

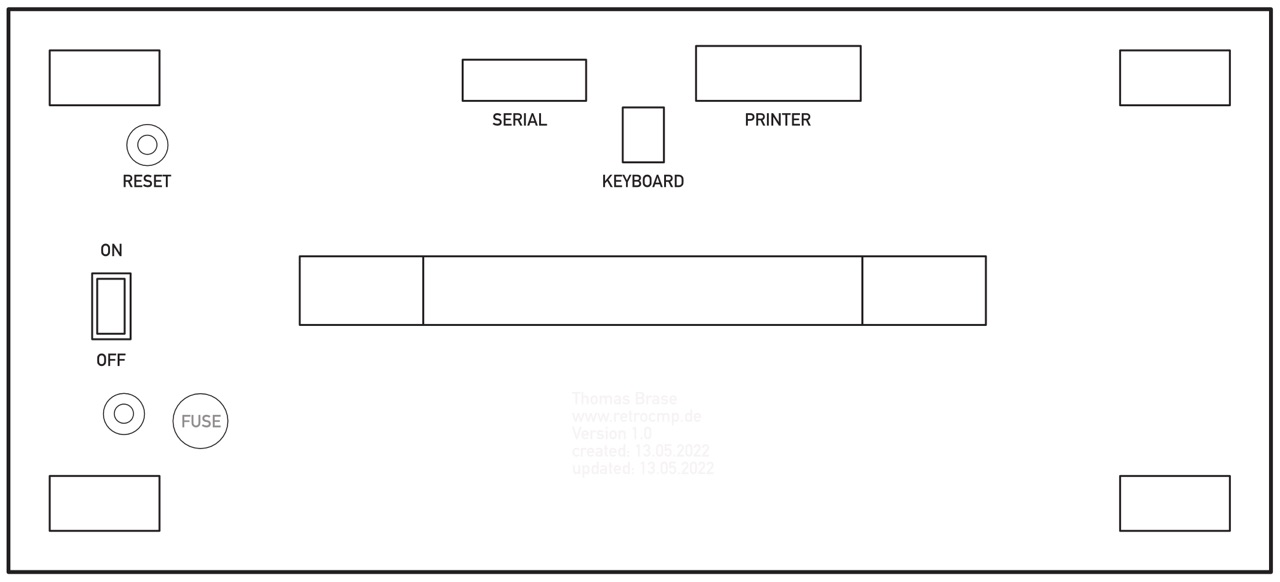

Kaypro II & 2 - Back

Pre-Kaypro 10

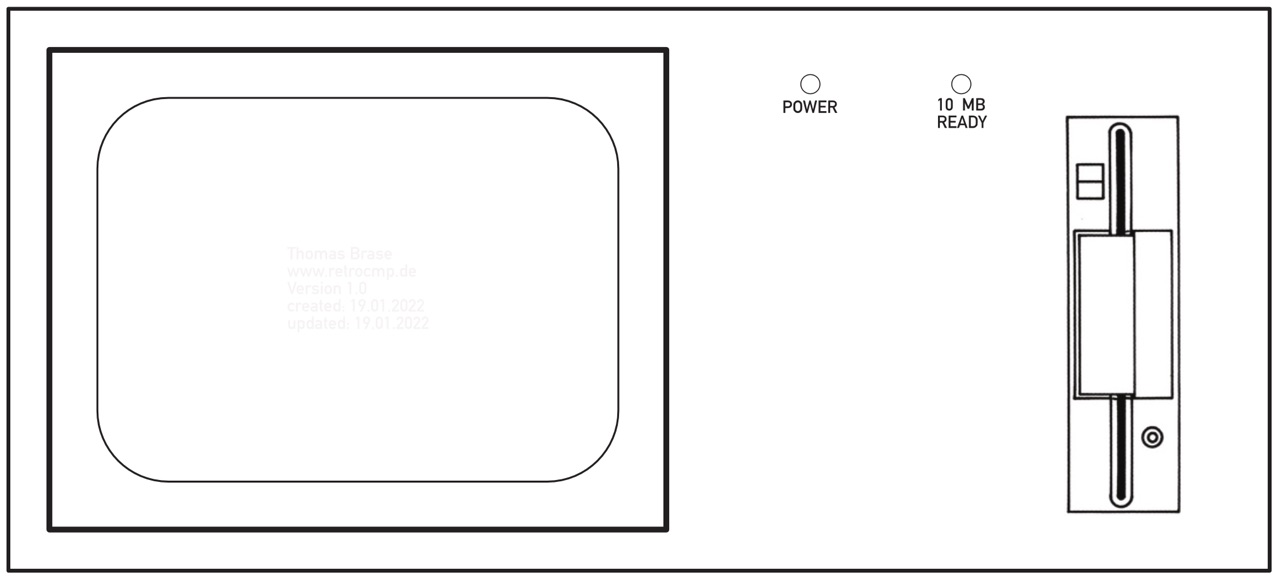

Kaypro 10/83

US Market

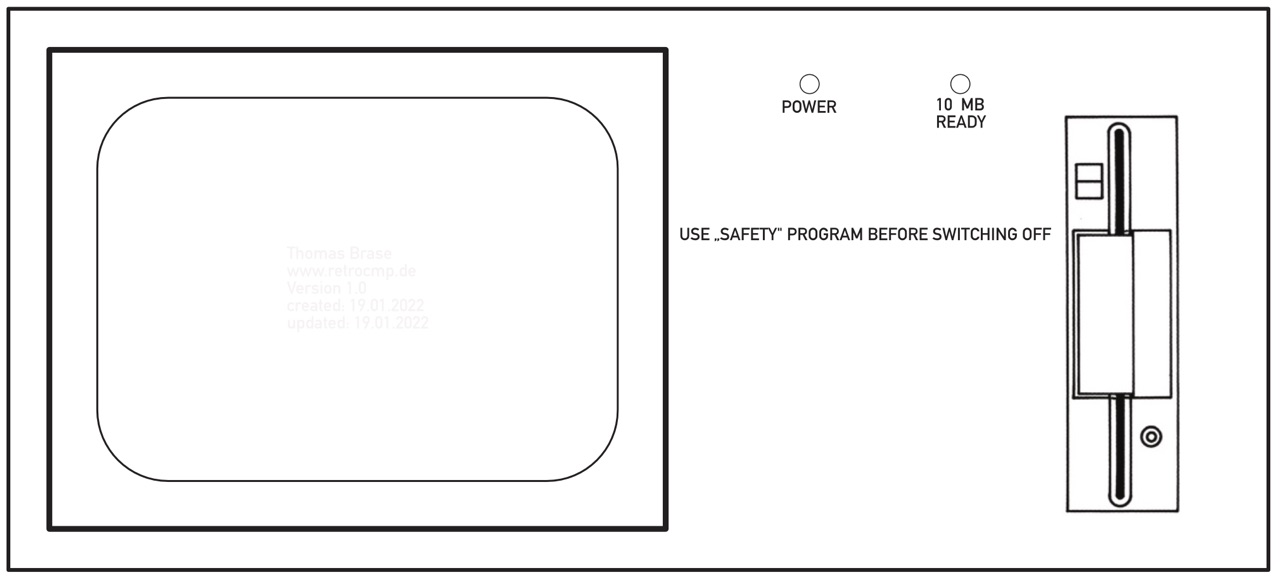

European (EU) Market

Kaypro 10/84

USA Market

Like the Kaypro 10 but with one Drivetec floppy disk drive.
